self loader mobile mixer truck is used and welcomed in rural area or suburbs due to the insufficient labors, materials, unfriendly geographic conditions. One mixer truck can be used as a mobile mini concrete batching plant, loading and measuring material, mixing and discharging through extended chute to a big range with 180degree radius.

4cubic self loader mobile mixer truck SD4000M is big enough for most small projects. It is not too small not too big to avoid difficulty on workspace visibility.

SD4000M self loader mobile mixer truck

Model SD4000M
Vehicle size (L×W×H) “6700×2800×4220(Lifting arm)
7900×2800×3070 (Drop arm)”
Wheelbase 3200mm
Track width 1710mm
Overall weight 8700kg
Engine YCD4J22T-115
Power 85kw
Gearbox 280 Separated
Drive axle 2.5T Wheel side reduction axle
Tyre 16/70-R 22.5 double tyre
Capacity of bucket 0.65m3
Stirring capacity 3m3
Reduction ratio 1:28
Rotate speed ≥15laps/minute
Reducer Made in china
Running speed 35km/h
Shaft number traction type 4×4
Water tank capacity 640L
Diesel tank capacity 170L
Hydraulic tank capacity 140+26L
Container loading 1x40HQ loads 1unit. 3X40HQ loads 4units.
Optional: Cement bucket/Hydraulic weighing system/Rim Cover/Air conditioner/High pressure washer/Automatic lubrication

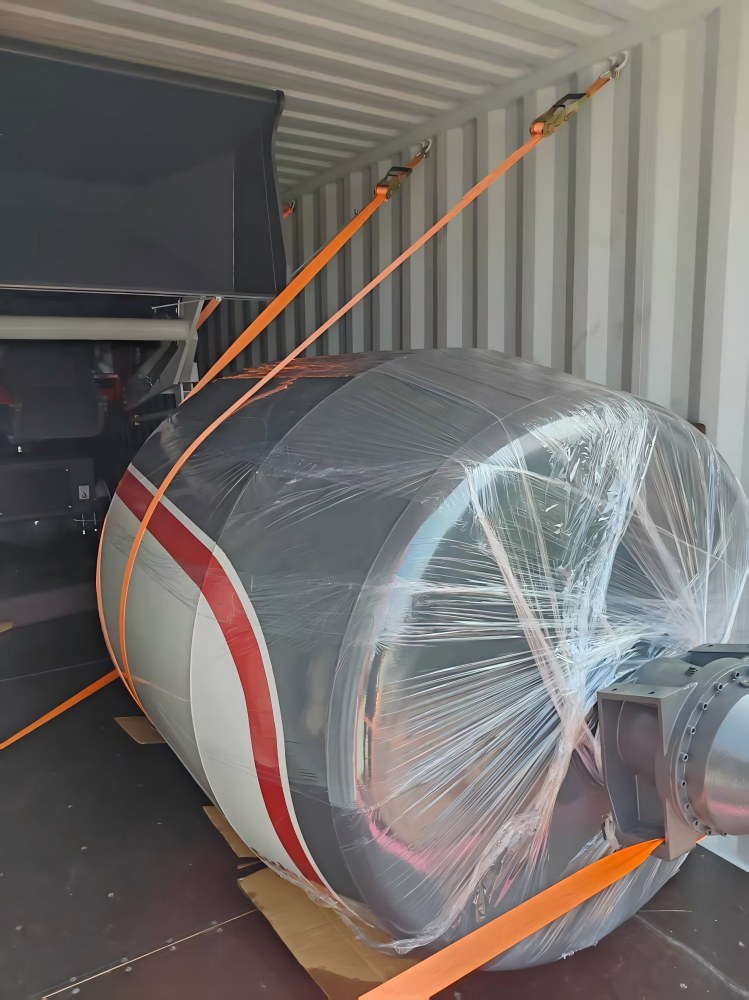

self loader mobile mixer truck dismantled condition in container loading
self loader mobile mixer truck dismantled condition in container loading
