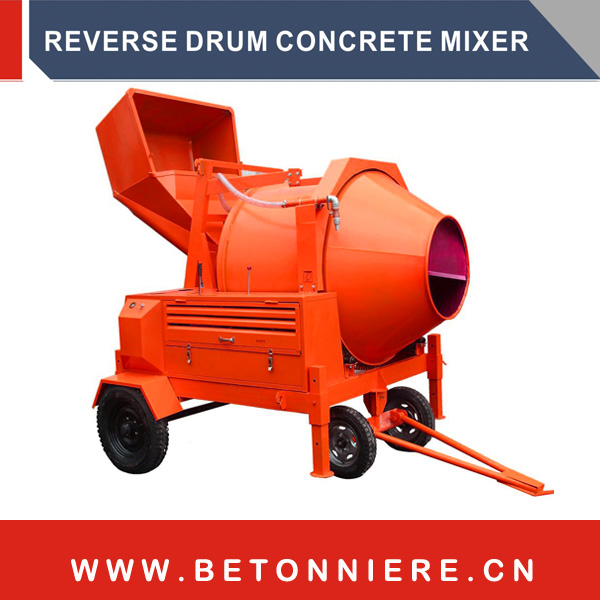

JZR350-DH and JZR500-DH are self loading mixer with hydraulic loading hopper, powered by diesel engine, powder coating treatment, lower cost than RDCM350-11DH and RDCM500-16DH.

How many bags of cement for mixing one time?

2bags of 50kg cement for JZR350-DH.

3bags of 50kg cement for JZR500-DH.

JZR350-DH
Capacity: 350L
Loading Capacity: 560L
Productivity: 10-14m3/h
Maximum Size of Aggregate: 60 mm
Diesel Engine Power: JIANGDONG S1100
Power of Water Pump: 0.55kw
Pressure of Gear Pump: 20MPa
Pressure of Turning Valve: 31.5Mpa
Accuracy of Water Supply Error≤ 2﹪
Max Trailing Speed: 20 km/h
Tyre Size: 6.50-16
Speed of Mixing Drum: 14RPM
Dimension During Transportation (L×W×H): 2766×2140×3170MM
Overall Weight: 1500KGS

One 40HQ container loads 5units.

JZR500-DH
Capacity: 500L
Loading Capacity: 750L
Productivity: 10-14m3/h
Maximum Size of Aggregate: 60 mm
Diesel Engine Power: JIANGDONG S1105
Power of Water Pump: 0.55kw
Pressure of Gear Pump: 20MPa
Pressure of Turning Valve: 31.5Mpa
Accuracy of Water SupplyError≤ 2﹪
Max Trailing Speed: 20 km/h
Tyre Size: 6.50-16
Speed of Mixing Drum: 14RPM
Dimension During Transportation (L×W×H): 3066×2140×3170MM
Overall Weight: 1800KGS

One 40HQ container loads 5units.
